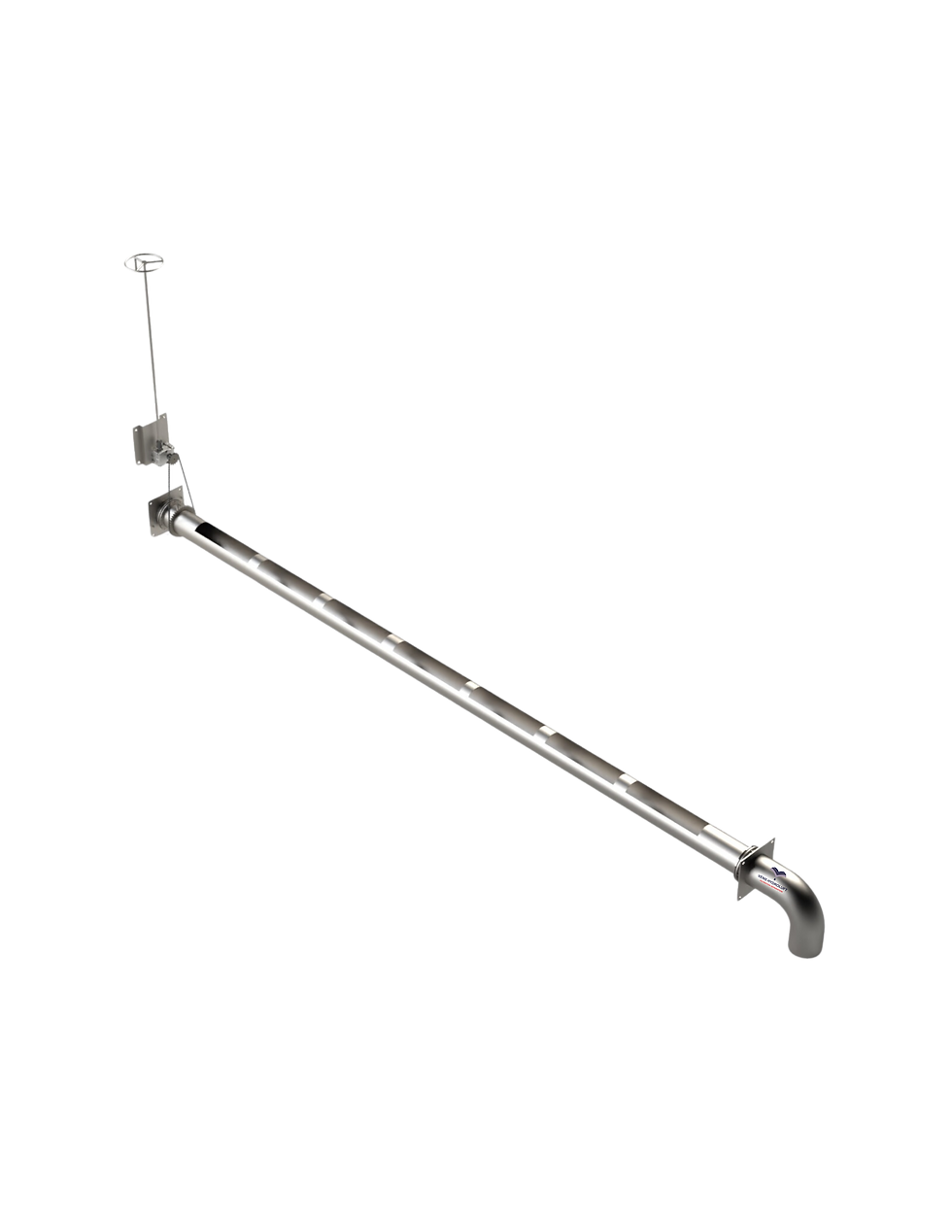

SLOTTED PIPE OIL SKIMMER

Consist of a Rotary Slotted tube mounted on top of a tank. Floating scum gets collected into the slotted tube and it is discharged to drain.

The Slotted Tube consists of 60° slot with reinforced gaps and rotates – as often as required - through manual handle or motorised arrangement.

The Tube is supported on one side to a closed flange and other side to an open flange from where the scum is discharged.

Slotted Pipe Oil Skimmer Overview

Our Slotted Pipe Oil Skimmer is designed to effectively skim oil as per requirement. The swivel joints are specially designed for submerged operation. The Skimmer can be operated manually or can be automated. It can operate in a pit with varying water levels.A Slotted Pipe Oil Skimmer is a simple and efficient mechanical device used for removing oil, grease, and other hydrocarbons from water surfaces. It is widely used in industrial, marine, and wastewater treatment applications where oil separation is necessary.

Slotted Pipe Oil Skimmer Overview

Material of Construction

MOC of slotted tube : SS 304/MS/FRP/PVC
Tube Diameter : 200 NB
Slotted Angle : 60 deg
Rotary Mechanism : MotorizedLinkage / Motorized valve / Manual Handle

Material of Construction
Features

Application areas of Slotted Pipe Oil Skimmer

  • Industrial Wastewater Treatment

  • Oil Refineries & Petrochemical Plants

  • Marine & Ship Bilge Water Treatment

  • Food Processing Plants

  • Stormwater Runoff Management

Application areas

Slotted Pipe Oil Skimmer Datasheet

Datasheet
